Vertical color mixing machine
  • Details

Features:

The part in contact with the material is made of stainless steel, which is easy to clean and avoid rust.

Equipped with cycloid pin gear motor, direct-connected installation, low noise and durable.

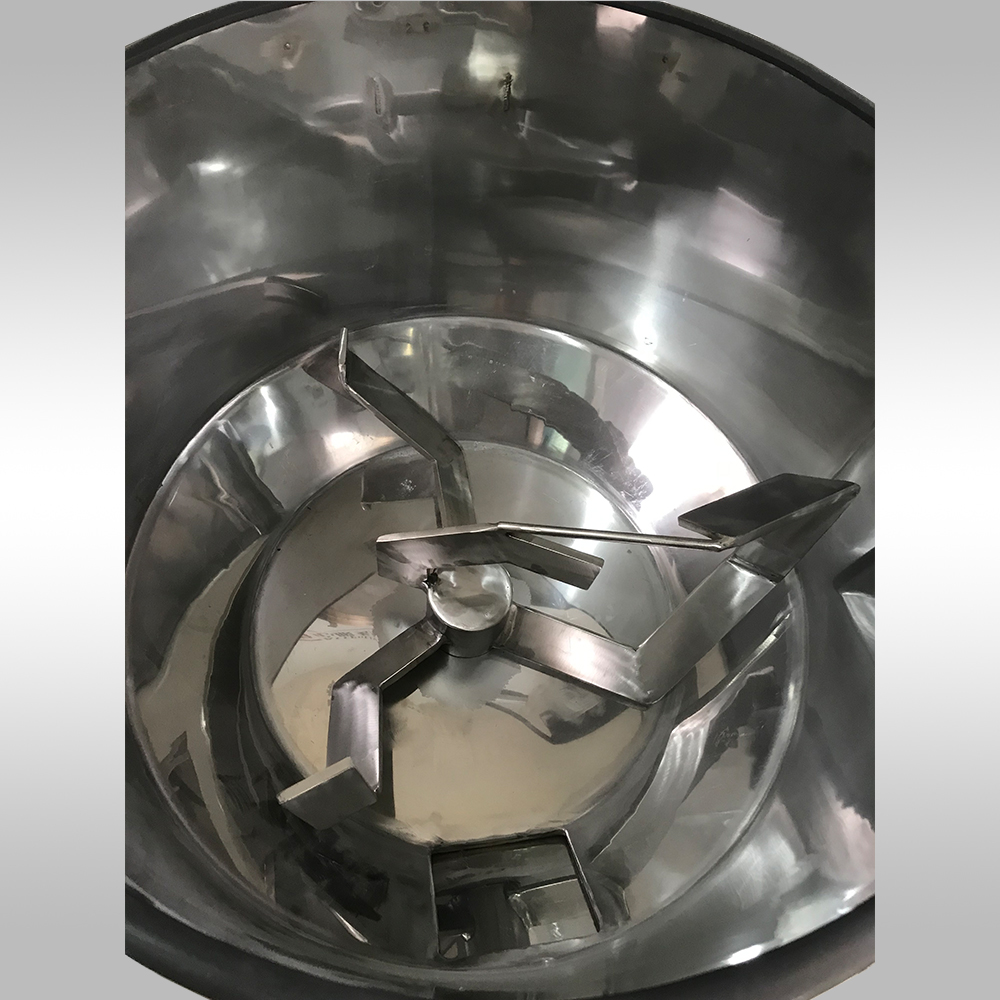

All stainless steel blades, scientific and reasonable structure, can be fully stirred during work

The raw materials are uniformly mixed in a short time, with low energy consumption and high efficiency.

The lid of the barrel is stamped and formed, which is precise, beautiful and more durable.

Equipped with electric control safety protection device to ensure safe operation.

With automatic stop device, it can be set to stop automatically in 0-30 minutes.

Special height can be customized according to requirements, which is convenient for feeding.

Standard:

Model

Power (KW)

Capacity (kg)

Rotating speed(r/min)

Dimensions (mm)

Weight(kg)

MM-50VM

1.5

50

85

880*800*1030

100

MM-100VM

3

100

85

1000*920*1230

150

MM-150VM

4

150

63

1150*1100*1310

220

MM-200VM

5.5

200

63

1220*1180*1400

280

MM-300VM

7.5

300

63

1300*1260*1500

350

MM-400VM

11

400

63

1420*1400*1850

500
